Precision Shingled String Cell Terminal Head Welding Machine for Consistent and Cost-Effective Solar Panel Manufacturing

Type:

Specification:

Profile:
Shingled solar cell terminal head welding machine is an automatic equipment to do welding at both heads of solar module string cells with the ribbon.
Inquiry NOW!

Precision Shingled String Cell Terminal Head Welding Machine for Consistent and Cost-Effective Solar Panel Manufacturing

Main Function

Shingled  solar cell terminal head welding machine is an automatic equipment to do welding at both heads of solar module string cells with the ribbon.

The whole equipment includes: transfer unit, A fiber optic sensor detection and mechanical positioning unit, A ribbon process unit, A infrared welding system, cell string transfer unit, B fiber optic sensor detection and mechanical positioning unit, B ribbon Process unit, B infrared welding system, temperature control system, unloading mechanical arm, finished product box, etc.

Working principle: transfer the solar cell string to the conveyor belt, move to the A side positioning unit to position the solar string, after completion, A ribbon handling unit moves busbar to the positive lead of the cell string and fixes it, the infrared light welding system completes the welding; the transfer unit moves the cell string to B side, repeats the same action on the A side to weld the negative terminal of the cell string, after completion of the welding, the unloading mechanical arm will pick up the solar cell string and put it into the finished product box.

Space reserved for expansion: ports reserved for tabber stringer and string inspection and layup machine docking.

Main Technical Parameters

Product Model

STW-60A

Soldering Capacity

20S/String (based on 166mm cell)

Cell Size

158.75 166 210

Cell thickness

0.15-0.25mm

Ribbon Size

6-8X0.12mm

Flux spraying method

immersion

Number of glue heads

2 pcs

Welding Method

Infrared heating welding

Positioning

Mechanical + optical fiber sensor

Breakage rate

3‰ (A grade)

Cell String Minimum length

600mm

Cell String Maximum length

2000mm

Electrical system

PLC+ touch screen + servo + module

Human-machine Interface

Touch screen display, friendly interface for easy

operation

Fault Alarm

Real-time fault alarms

Device color

Main body traffic white

Power supply

Three-phase five-wire, 380VAC/50Hz

Rated power

6KW

Air Source

0.6-0.8Mpa; 300L/min ; Inlet pipe diameter: 12mm

Equipment size

L*W*H 5100*1715*1940mm

Software

Lifetime free upgrades

Detail picture

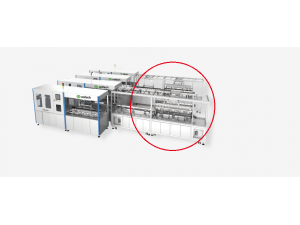

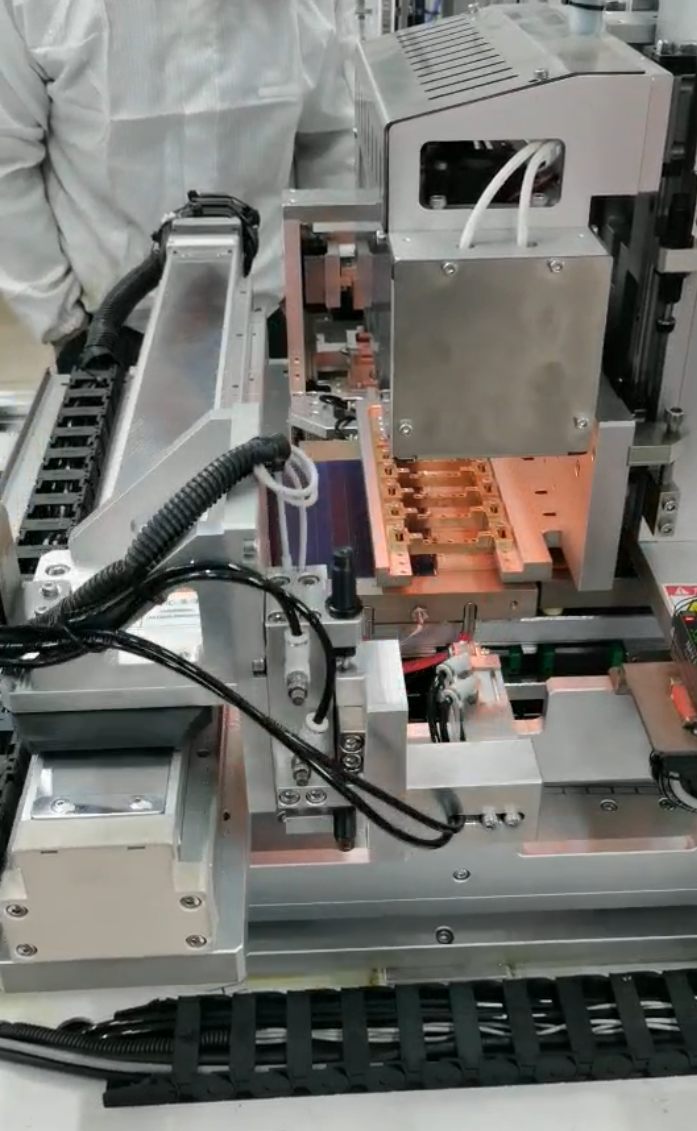

Shingled String Cell Terminal Head Welding Machine
