Sun Simulator Solar Panel Tester - Solar Panel Making Machine

Type:

Specification:

Profile:
AAAAA 5A Sun Simulator, high quality and good price.
Inquiry NOW!

Sun Simulator  Solar Panel Tester - Solar Panel Making Machine

Machine Function


Sun Simulator is used to test the electric performance of Mono-Si or Poly-Si solar modules and record the results in files.

Technical Parameter


MODEL

OSMT-A

OSMT-B

Lamp spectrum

In   line with iec60904-9

spectral   Irradiance distribution requirement(AM1.5)

Light intensity

700_1200W/M2    continuous adjustable

Light intensity non-uniformity

≤±2%   【A】

≤±3%

Light intensity instability of irradiation(STI)

≤±0.5%   【A】

≤±2%

Light intensity instability Non-Uniformity of Irradiance(LTI)

≤±2%

≤±2%

Test results consistency

≤±0.5%【A】

≤±1%

Single flash time

10ms~40ms

10ms

Effective test range

2400×1400mm/5W-650W

Measuring voltage

0-100V(resolution   1mV)

Measuring current

0-20A(resolution   1mA)

Power Supply

AC220V/50HZ/2KVA

Test parameters

Isc、Voc、Pmax、Vm、ImFF、EFF、Temp、Rs、Rsh

Xenon Lamp service time

100,000flash   times

Weight

600kgs

Detail picture

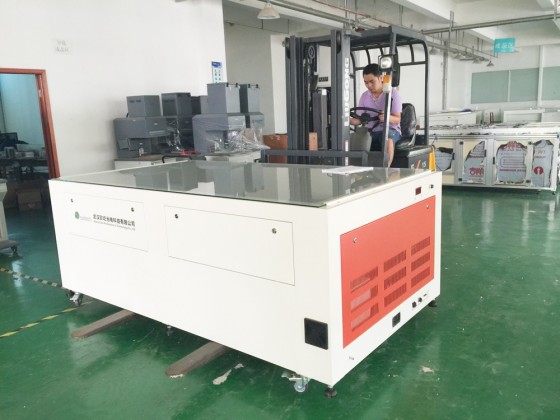

Sun Simulator

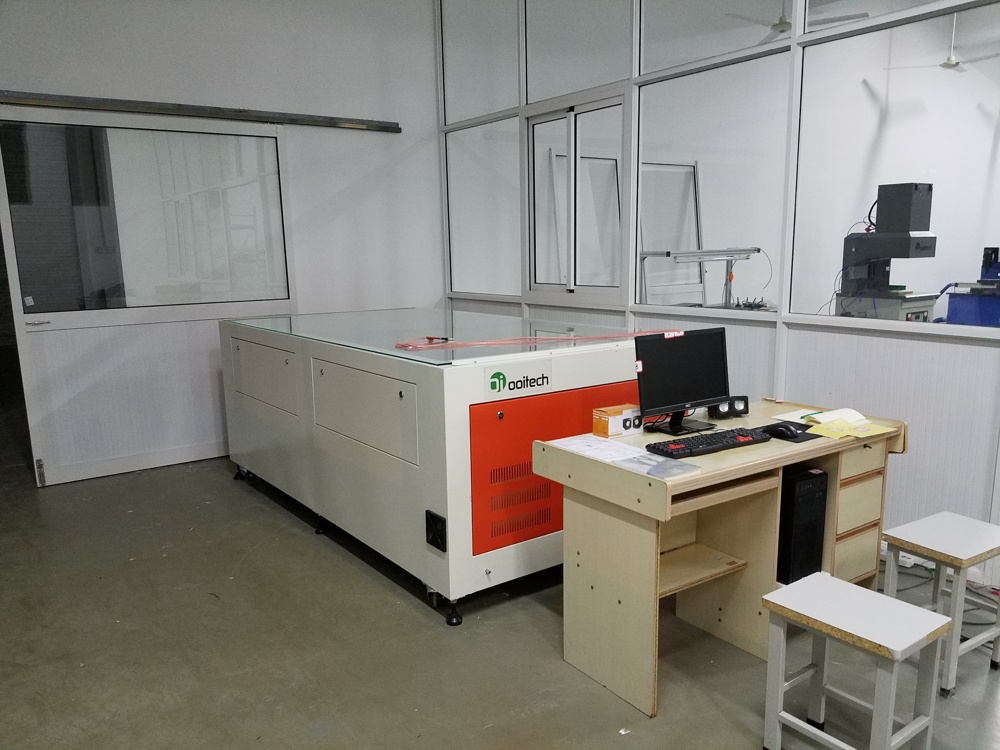

Solar Panel Tester
