120MW Full Automatic solar panel manufacturing equipment solar panel making machines


Summary: 120MW Full Automatic Production Conveyor Line solar panel making machines

120MW Full Automatic solar panel manufacturing equipment solar panel making machines


Many people want to set up a solar module factory, but they still haven't started construction because they don't understand the equipment and configuration.

So, What Machines are needed about 120MW Full Automatic solar panel manufacturing equipment solar panel making machines?


120MW Full Automatic solar panel manufacturing equipment solar panel making machines Including the following products:


· Solar Cell Tester
· Damage Free Solar Cell Laser Cutting Machine

· Tabber and Stringer Machine
· Solar Cell Lay Up Machine
· Solar Soldering Bussing Machine
· Solar Panel EL Defect Tester with Visual Inspecting Function
· Solar Laminator
· Solar Panel Framing Machine

· Solar Sun Simulator

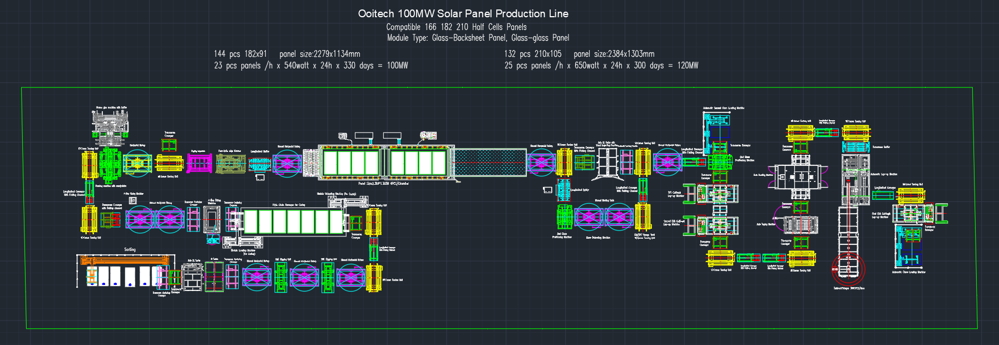

1. Factory Layout Drawing:

100-120MW solar panel making machines

solar panel production steps


Learn more about solar panel manufacturing process kindly visit :

https://www.solarmakingmachine.com/Solar-Panel-Manufacturing-Process/


2. Function & Picture of Main Machines of 120MW Full Automatic solar panel manufacturing equipment solar panel making machines:

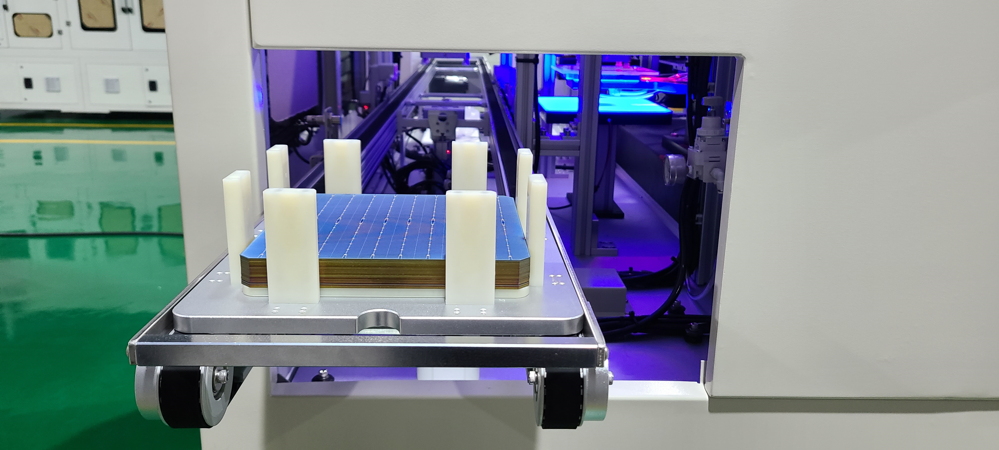

· Solar Cell Tester

Function:

Solar cell tester and Sorter is used to test the electrical performance of Mono-Si or Poly-Si solar cell pieces and record the results in files.

Picture:

solar cell tester and sortersolar cell tester



· Damage Free Solar Cell Laser Cutting Machine

Function:

Damage free solar cell laser cutting machine is used to cut solar cell into half piece or 1/3 piecewhich can increase the output of the solar panel power.

Damage free solar cell laser cutting machine is with lower power, lower temperature, and water-free dicing, and also has higher bending strength, better electrical performance, and no secondary pollution or water-caused micro-broken after cutting.

Picture:

solar cell laser cutting machinedamage free solar cell laser scribing machine


· Tabber and Stringer Machine

Function:

Tabber and stringer machine is used to weld the solar cells one by one through copper ribbon, and the cells are connected in series to form a string. The entire welding process is fully automated.

Picture:

tabber and stringer machine pricetabber and stringer machine




· Solar Cell Lay Up Machine

Function:

Used to achieving solar string automatic laying on glass EVA, and transporting module to the next process

Solar Cell String Lay Up MachineSolar String Lay Up Machine


· Solar Soldering Bussing Machine

Function:

Solar soldering bussing machine adopts the method of separating the cell string from the glass, and grab the cell string in the air, then to interconnected solder the head, middle and tail bus bar of the middle wire edition module at a certain height; It has the function of a roll feeding bus bar, bending U and L leads upwards.

solar panel bussing machine solar bussing machine




· Solar Panel EL Defect Tester with Visual Inspecting Function

Function:

Automatic solar panel EL defect tester with visual inspecting function is used in testing the solar cell crack,breakage, black spot,mixed wafers,process defect,cold solder joint phenomenon.

Picture:

Solar Module EL Defect Tester with Visual Inspecting FunctionSolar Module EL Defect Tester


· Solar Laminator

Function:

Solar laminator is a mechanical device that presses multiple layers of materials together.

Picture:

solar laminatorSolar Panel Laminator

· Solar Panel Framing Machine

Function:

Solar panel framing machine is used to install the aluminum frame and automatically overflow glue.

Picture:

Solar panel Framing Machinesolar framing machine

· Solar Sun Simulator

Function:

Solar sun simulator is used to test the electric performance of Mono-Si or Poly-Si solar modules and record the results in files .

Picture:

solar simulatorsolar panel tester



3. Packaging and transportation of 120MW Full Automatic solar panel manufacturing equipment solar panel making machines


4. Case of 120MW Full Automatic solar panel manufacturing equipment solar panel making machines




New Solar Cell cutting machine
