5MW Solar Panel Production Line Solar Panel Making Machines


Summary: 5MW Solar Panel Production Line Solar Panel Making Machines


5MW Solar Panel Production Line Solar Panel Making Machines

Many people want to set up a solar module factory, but they still haven't started construction because they don't understand the equipment and configuration.

So, What Machines are needed about 5MW Solar Panel Production Line Solar Panel Making Machines?


5MW Solar Panel Production Line Solar Panel Making Machines Including the following products:


· Solar Cell Tester
· Solar Cell Laser Cutting Machine

· Tabber and Stringer Machine
· Solar Panel EL Defect Tester
· Solar Laminating
· Semi Auto Solar Panel Framing Machine

· Solar Simulator

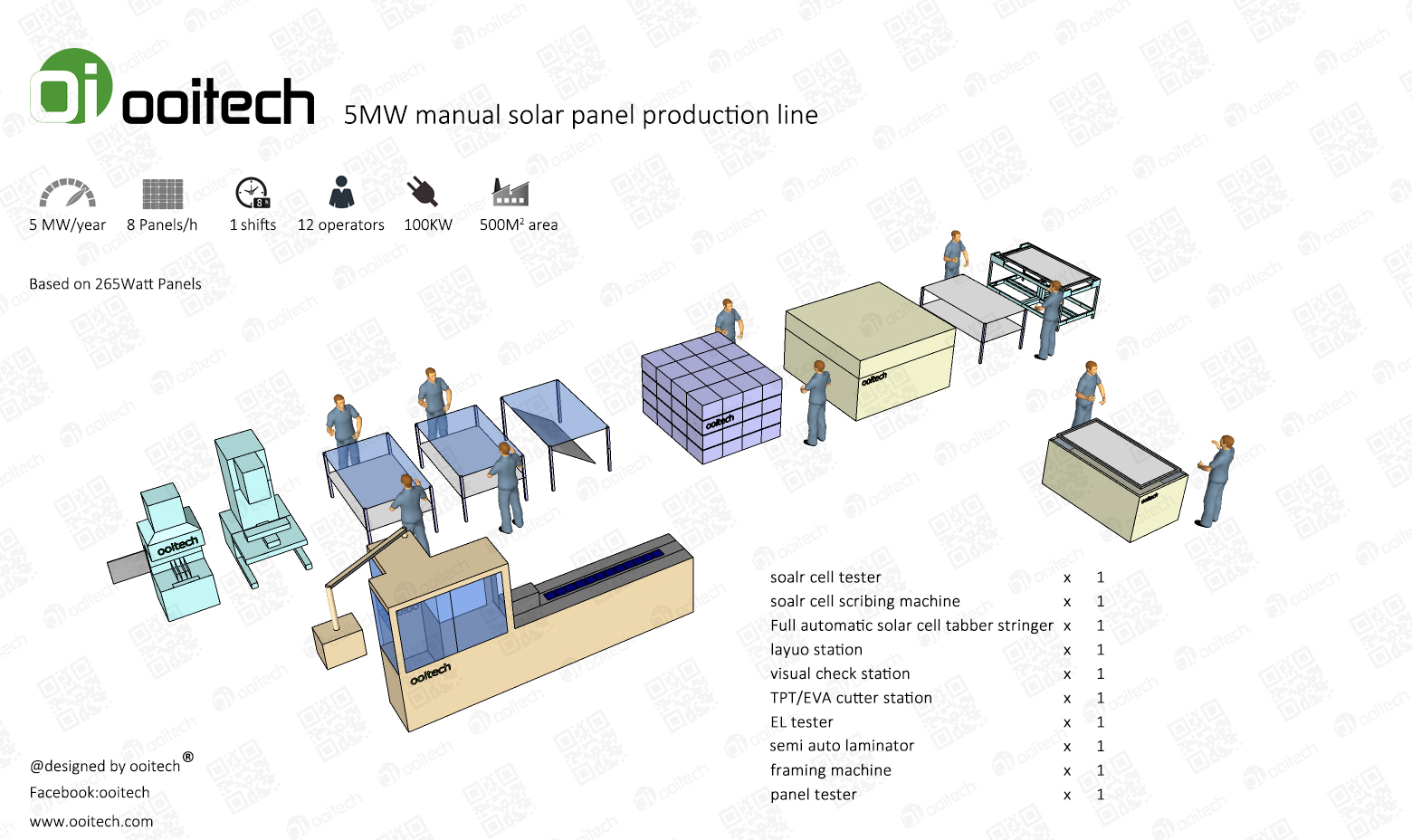

1. Factory Layout Drawing:


5MW Solar Panel Production Line Solar Panel Making Machines



5MW/year(8hours)        8panels/h(265w)        12operators        100KW        800M2 area


Learn more about solar panel manufacturing process kindly visit :

https://www.solarmakingmachine.com/Solar-Panel-Manufacturing-Process/


2. Function & Picture of Main Machines of 5MW Solar Panel Production Line Solar Panel Making Machines:

· Solar Cell Tester

Function:

Solar cell tester and Sorter is used to test the electrical performance of Mono-Si or Poly-Si solar cell pieces and record the results in files.

Picture:

solar cell tester and sortersolar cell tester

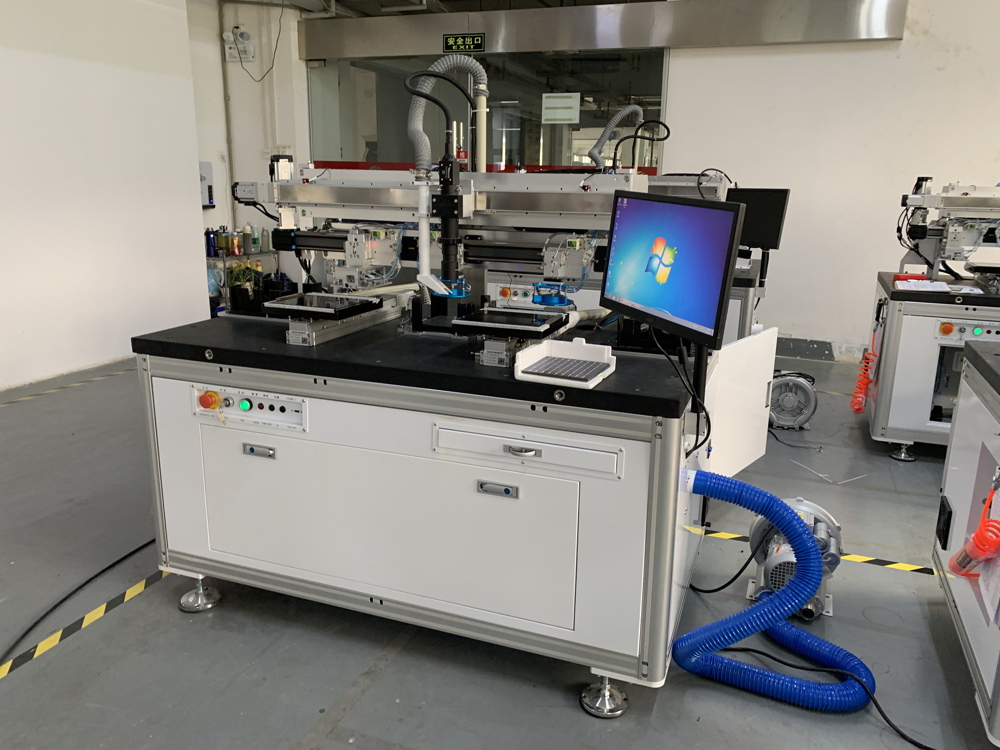

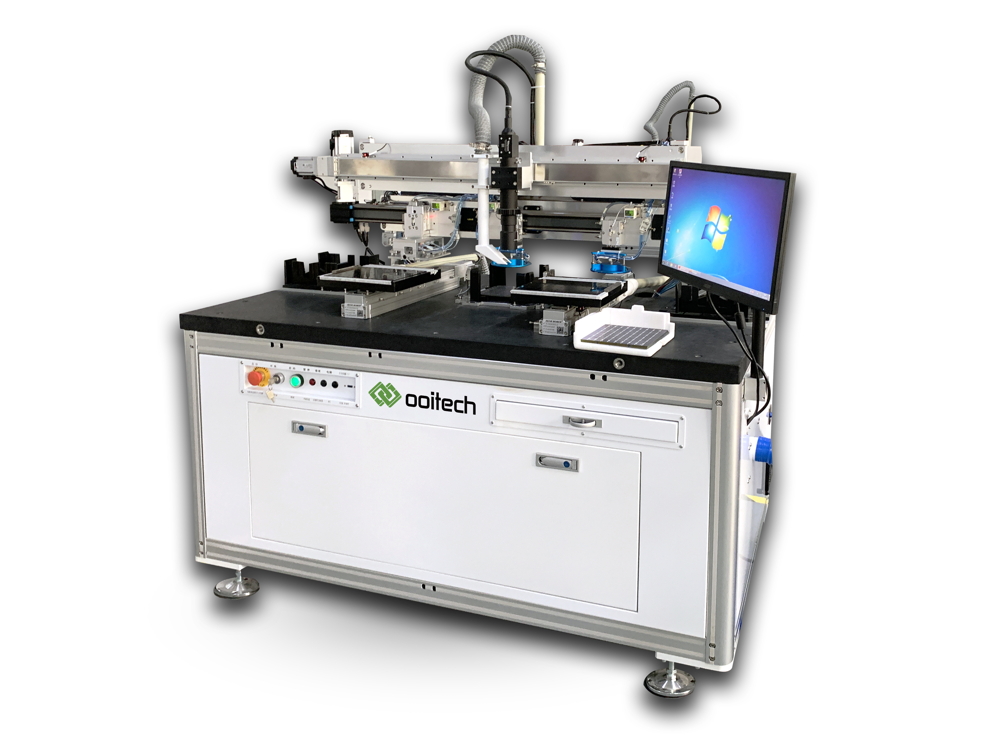

· Solar Cell Laser Cutting Machine

Solar cell laser cutting machine is used to cut solar cell into half piece or 1/3 piecewhich can increase the output of the solar panel power.

Damage free solar cell laser cutting machine is with lower power, lower temperature, and water-free dicing, and also has higher bending strength, better electrical performance, and no secondary pollution or water-caused micro-broken after cutting.

Picture:

solar cell laser cutting machinesolar cell cutting machine

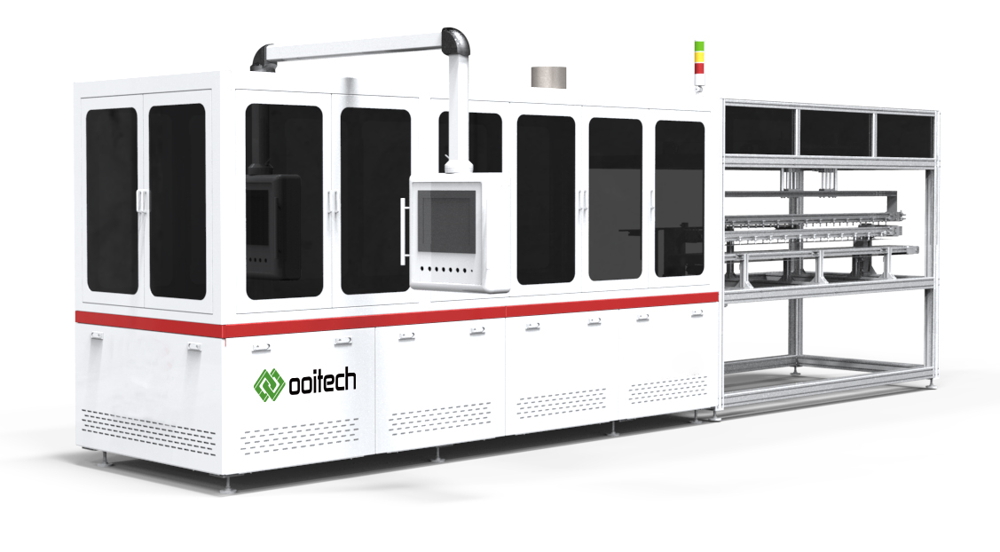

· Tabber and Stringer Machine

Function:

Tabber and stringer machine is used to weld the solar cells one by one through copper ribbon, and the cells are connected in series to form a string. The entire welding process is fully automated.

Picture:

tabber and stringer machinetabber and stringer

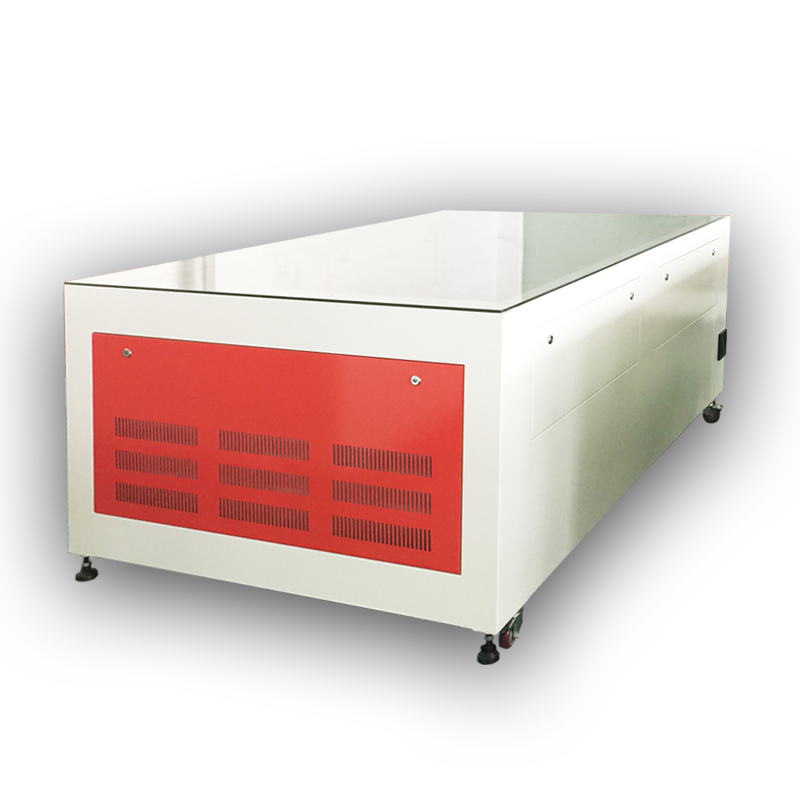

· Solar Panel EL Defect Tester

Function:

Automatic solar panel EL defect tester with visual inspecting function is used in testing the solar cell crack,breakage, black spot,mixed wafers,process defect,cold solder joint phenomenon.

Picture:

Solar Panel EL Defect TesterSolar Panel EL Tester

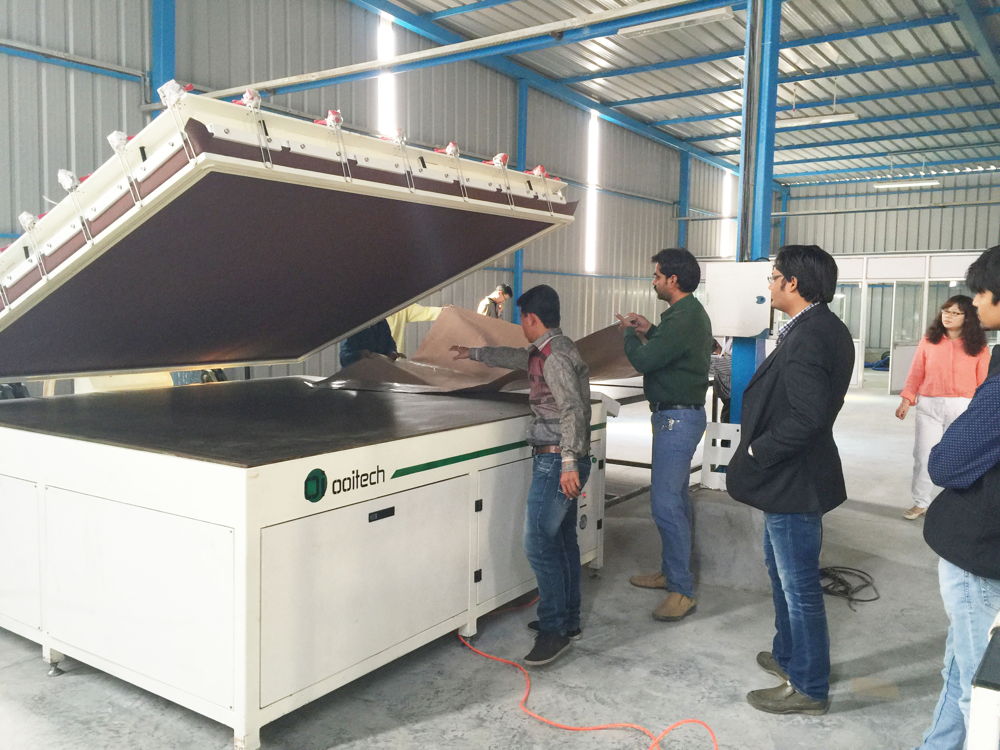

· Solar Laminating

Function:

Solar laminator is a mechanical device that presses multiple layers of materials together.

Picture:

solar laminatorsolar laminating

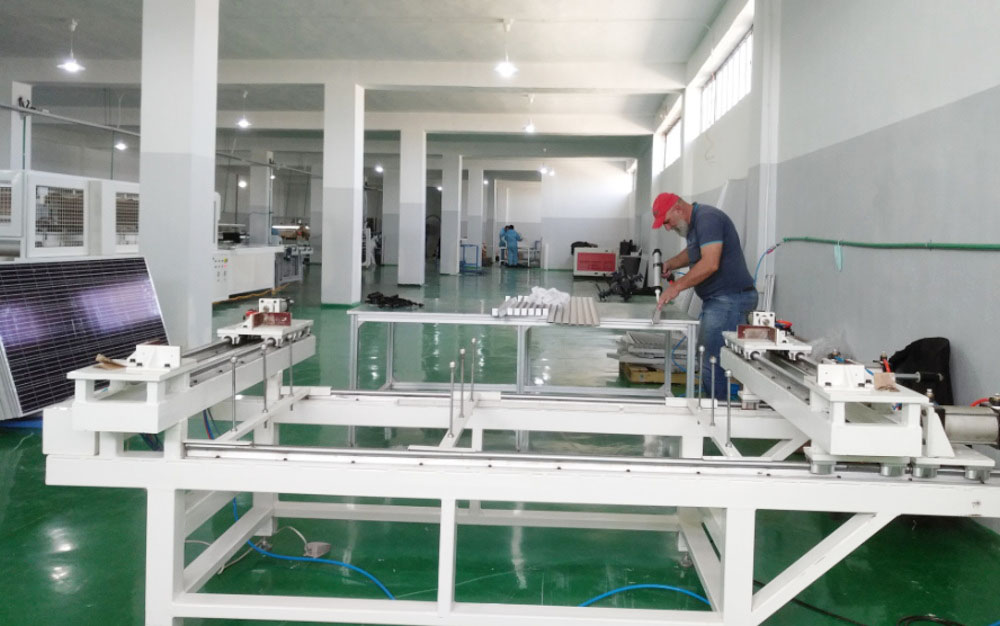

· Semi Auto Solar Panel Framing Machine

Function:

Solar panel framing machine is used to install the aluminum frame and automatically overflow glue.

Picture:

solar framing machineframing machine


· Solar Simulator

Function:

Solar sun simulator is used to test the electric performance of Mono-Si or Poly-Si solar modules and record the results in files .

Picture:

solar simulatorsolar panel tester


3. Packaging and transportation of 5MW Solar Panel Production Line Solar Panel Making Machines


4. Case of 5MW Solar Panel Production Line Solar Panel Making Machines
