Solar Stringer Layup Machine - Solar Panel Production Line

Type:

Specification:

Profile:
Solar Stringer Layup Machine is used to Achieve solar string automatic laying on glass EVA.
Inquiry NOW!


Solar Stringer Layup Machine - Solar Panel Production Line

Machine Function

Achieving solar string automatic laying on glass EVA, and transporting module to the next process

Technical Parameter

Specifications

Model

OTHS-PBR

Power supply

AC380V 50Hz

Power

10kW

Cycle time

single string5s

String arrangement accuracy

±0.3mm

Applicable module specification

2450*1400mm

Air consumption

500L/min

Dimensions(L*W*H)

3200*2800*2200mm

Functionality

Compatibility

Regular 60/72 cells, double glass, three junction

boxes type and half-cell modules

Operation Mode

One button switch

Noise level

60dB

HMI

Chinese/English mode

Feature

Overall Machine

1. Maximum module specification 2450*1400mm

2. Compatible with horizontal and vertical types

3. One button switch

Cell string conveyor

1. conveyor with narrow belt, avoid misjudging due

to belt dirt

2. Servo drive, indifference docking with stringer

CCD image system

1. CCD image calculation

2. Adjust the fixing camera way in plane motion,

improve higher photo accuracy

3. Camera image part can be drived by servo

Robot action

Absorbing string cell directly, saving time

Detail picture

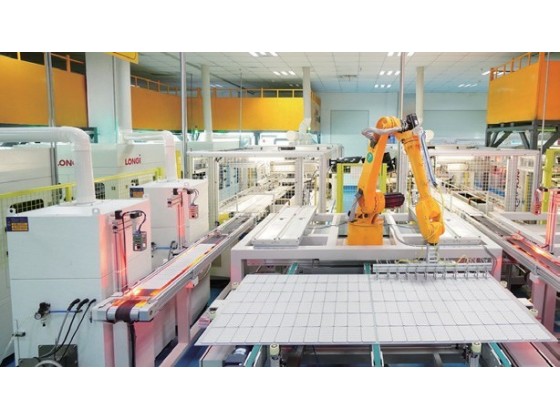

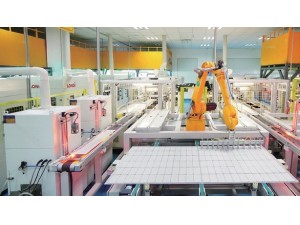

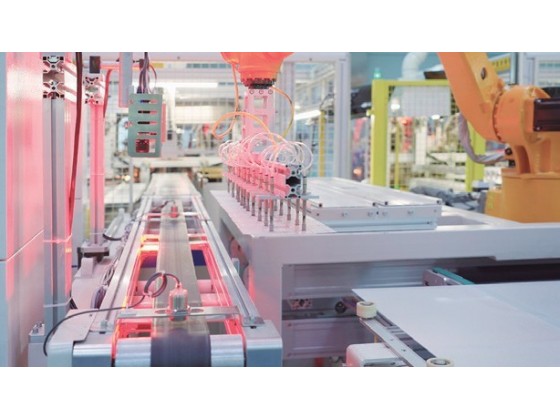

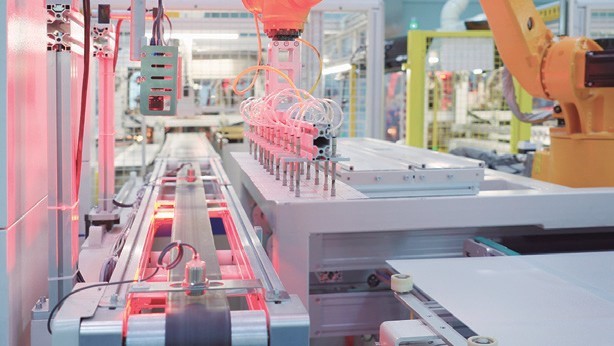

Solar Stringer Layup MachineAutomatic Layup Machine with Robot
