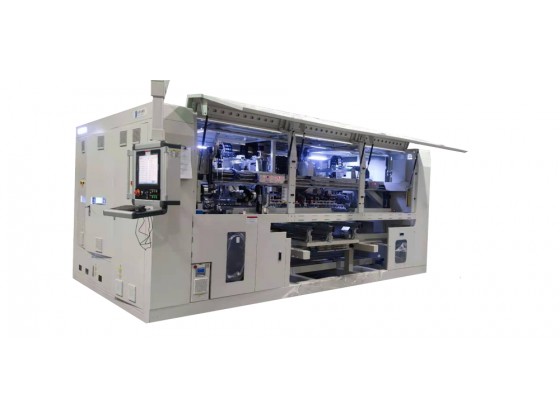

156-210 Mbb 50-60s/Panel Auto Solar Cell String Bussing Machine

Type:

Specification:

Profile:
Solar Cell String Bussing Machine is used to adopt the method of separating the cell string from the glass, and grab the cell string in the air, then to interconnected solder the head, middle and tail bus bar of the middle wire edition module at a certain
Inquiry NOW!

156-210 Mbb 50-60s/Panel Auto Solar Cell String Bussing Machine

Machine Function

Adopt the method of separating the cell string from the glass, and grab the cell string in the air, then to interconnected solder the head, middle and tail bus bar of the middle wire edition module at a certain height; It has the function of a roll feeding bus bar, bending U and L leads upwards.

Technical Parameter

MODEL

ODH180-S

Cell specification

166/9BB main busbar distance 16.79mm(other cell is optional, which can be upgraded upon payment.)

Module specification

6 strings*10pcs half cell*2

6 strings*12pcs half cell*2

cell distance-0.5--4mm, string distance 1-6mm.

Glass specification

width 980-1400 *length 1630-2500

Cycle

20S(exchange cycle of the transmission glass is 4.5s/module, thickness of the bus bar 0.35mm)

Soldering method

electromagnetic

Fragment rate

0.2 (as per pcs)

Pressure

0.6—0.8MPa

Flow rate

2 m³/min

Main pipe specifications

outer diameter φ16 (2 pieces)

Voltage

Three-phase five-wire 380V/220V

Frequency

50-60Hz

Power

Peak 30KW, average 20KW

Size

4805×4620 (including two pipelines)×2260mm

Detail picture

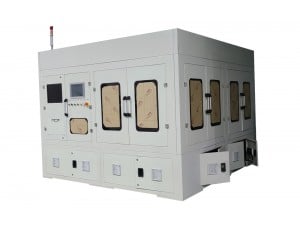

Solar Cell String Bussing Machine

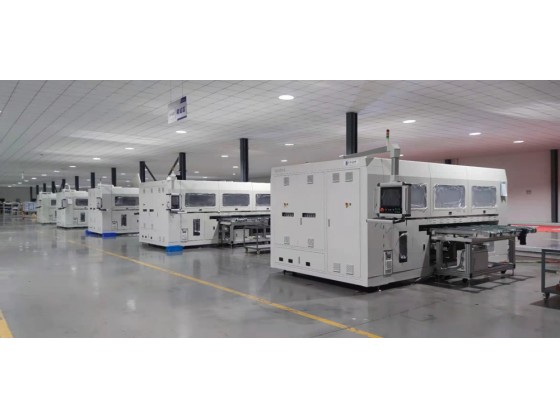

Solar String Bussing Machine
