2345 Double Chamber Fully Automatic Solar Panel Laminating Machine of Solar Panel Production Line

Type:

Specification:

Profile:
Solar Panel Laminating Machine is one of the most critical processes in the solar panel manufacturing production flow, it ensures the quality of solar panel.
Inquiry NOW!

2345 Double Chamber Fully Automatic Solar Panel Laminating Machine of Solar Panel Production Line

Machine Function:

Solar panel laminating machine is a mechanical device that presses multiple layers of materials together.

Technical Parameter

Name

2345 Double Chamber Fully Automatic Solar Panel Laminating Machine

Type

Double Chamber 2345

Main

paramete

Effective

lamination area

2300×4500×35-2

Dimension

20.4m × 3.25m ×1.8m

Power supply

AC380V 50Hz 3phase

Operating deck

Touch+PLC

rated power

145KW

Compress gas pressure

0.60.8MPa

Normal working rate

65KW

Compress gas flow

800L/min

Work vacuum Degree

40100Pa

Work temperature range

30180

Ultimate vacuum

40Pa

Temperature unevenness

≤±1.5

Height of laminating cavity

35mm

Temperature accuracy

±1

aeration speed

0-50L/s

Evacuation time

5~7min(Adjustable)

Machine weight

24T

Work cycle

9min

Equipment lifetime

≥10 YEARS

utilization rate of

equipment

≥99%

range of application

Can laminate single crystal, polycrystalline, double glass solar modules

Other configuration parameter

parameter

Upper cover length

≥250mm

Upper cover stroke

150mm

Temperature control mode

Intelligent PID control

Heating mode

SD320heating oil

Temperature control point

(standard) 5 see drawing-1

Heating power

54KW+54KW

Rubber lifetime

3000times

Conveying speed

413.5m/min

Vacuum pump

2X-70+ZJP600/2X-70

2X-70+ZJP600/2X-70

Transmission bearing load

≤300Kg

≤300Kg

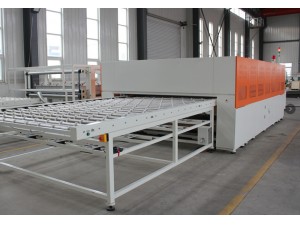

Detail Picture

Solar Panel Laminating Machine
