High Speed Fiber Laser Cutting Machine For Solar Cell - 158 210 4000 PCS/H

Type:

Specification:

Profile:
High speed cutting solar cells, max speed could be 4000 PCS Per hour.
Inquiry NOW!

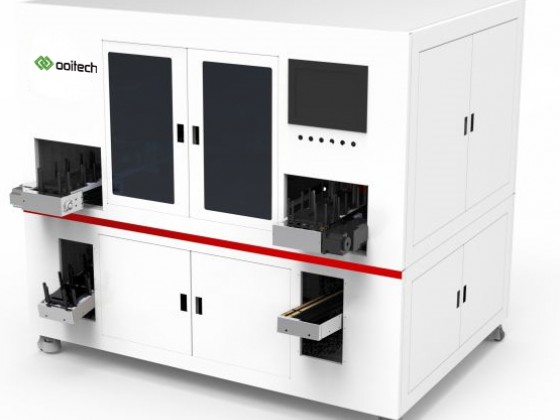

High Speed Fiber Laser Cutting Machine For Solar Cell - 158 210 4000 PCS/H

Machine Function

scribing or cutting and slivering the Solar Cells and Silicon Wafers to 1/2, 1/3 pieces in solar PV industry, including the mono-si (mono crystalline silicon) and poly-si (poly crystalline silicon) solar cells and silicon wafer. It can automatic feeding, automatic positioning and scribing, automatic splitting, and automatic loading the cutted small cells into box.

Machine Features

1. Using the 1064nm infrared light source, fixed optical path, good beam quality, thin laser scribing width, small heat-affected zone. cell cutting section is more neat, less damage to the  solar cell, and cutting high precision

2.High speed cutting solar cells, max speed could be 4000 PCS Per hour.

3. Industrial CCD detection system

Details

Model

OLS-4000

Laser wavelength

1064nm

Laser power

60W

Scribing width

40μm

Scribing speed

550mm/s

Laser Repetition Rate

25KHz-2000KHz

Center Positioning Accuracy

CCD center positioning: ±0.1mm

Applicable Cell Size

156*156mm-210*210mm

Thickness Deviation of the Same batch of cells

±0.1mm

Cell Size Deviation

0.15mm

Divide Equally

1/2 pieces ( can update to 1/3 or 1/4 pieces)

Scribing Depth

0~200um

Cell Thickness

0.15-0.3mm

Capacity

3400pcs cell/hour (full cell)

Fragmentation Rate

0.1%

Working power

380V/50Hz/10kvA

Suitable solar cell

156*156-210*210mm

Heat Affected Zone

100 um

Air Compressor

0.7MPa, 80L/min

Machine Dimension

2550*2100*2000mm

Weight

2000KG

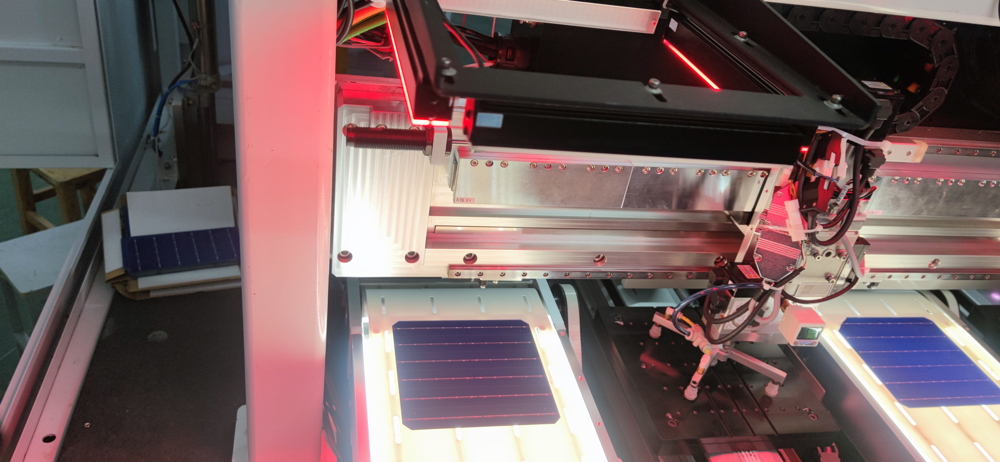

Detail picture

High-speed fiber laser cutting machine for solar cell

 fiber laser cutting machine
