2021 Solar Cell Laser Scribing Machine With Auto Devide

Type:

Specification:

Profile:
Solar cell laser scribing machine is suitable for scribing or cutting the Solar Cells and Silicon Wafers in solar PV industry, including the mono-si and poly-si solar cells and silicon wafer.
Inquiry NOW!

2021 Solar Cell Laser Scribing Machine With Auto Devide


Machine Function

Suitable for scribing or cutting the Solar Cells and Silicon Wafers in solar PV industry, including the mono-si  and poly-si solar cells and silicon wafer.

It can realize functions such as automatic material feeding, cell positioning, laser scribing, and boxing. Professional control software, free maintenance, easy operation.

Machine Features

l  Advanced scribing technology:

Adopt fiber laser source, good quality laser beam, slim laser scribing line, more uniform solar cell cutting surface, small damage to solar cell, high accuracy cutting.

l  High efficiency:

High laser scribing speed, producing capacity can reach to 1500 full cells/hour

l  Accuracy positioning:

Solar cell full automatic positioning, positioning accuracy ≤±0.1mm

l  High automation level:

Solar cell automatic loading and unloading, automatic positioning, automatic scribing. Stable performance, low failure rate, easy maintenance.


Technical Parameters

Items

Parameters and configuration

Positioning accuracy

Cell automatic positioning, error range ≤±0.1 mm

Laser wavelength (nm)

1064

Maximum scribing speed

500 mm/s Adjustable

Actual output

1800 full cells/hour (calculated by single cut of 166mm size cell)

Accuracy of scribing

±0.1mm

Line width

40μm

Work table

area/trip

Maximum working area: 245×245 mm (2pcs)

Module max running area :300×300 mm

Material size

156 x156~210 x210mm monocrystalline silicon,

polycrystalline silicon solar cells and silicon wafers

Material thickness

0.18-0.30 mm

Cell thickness deviation

±10μm

Breakage rate

≤0.1%

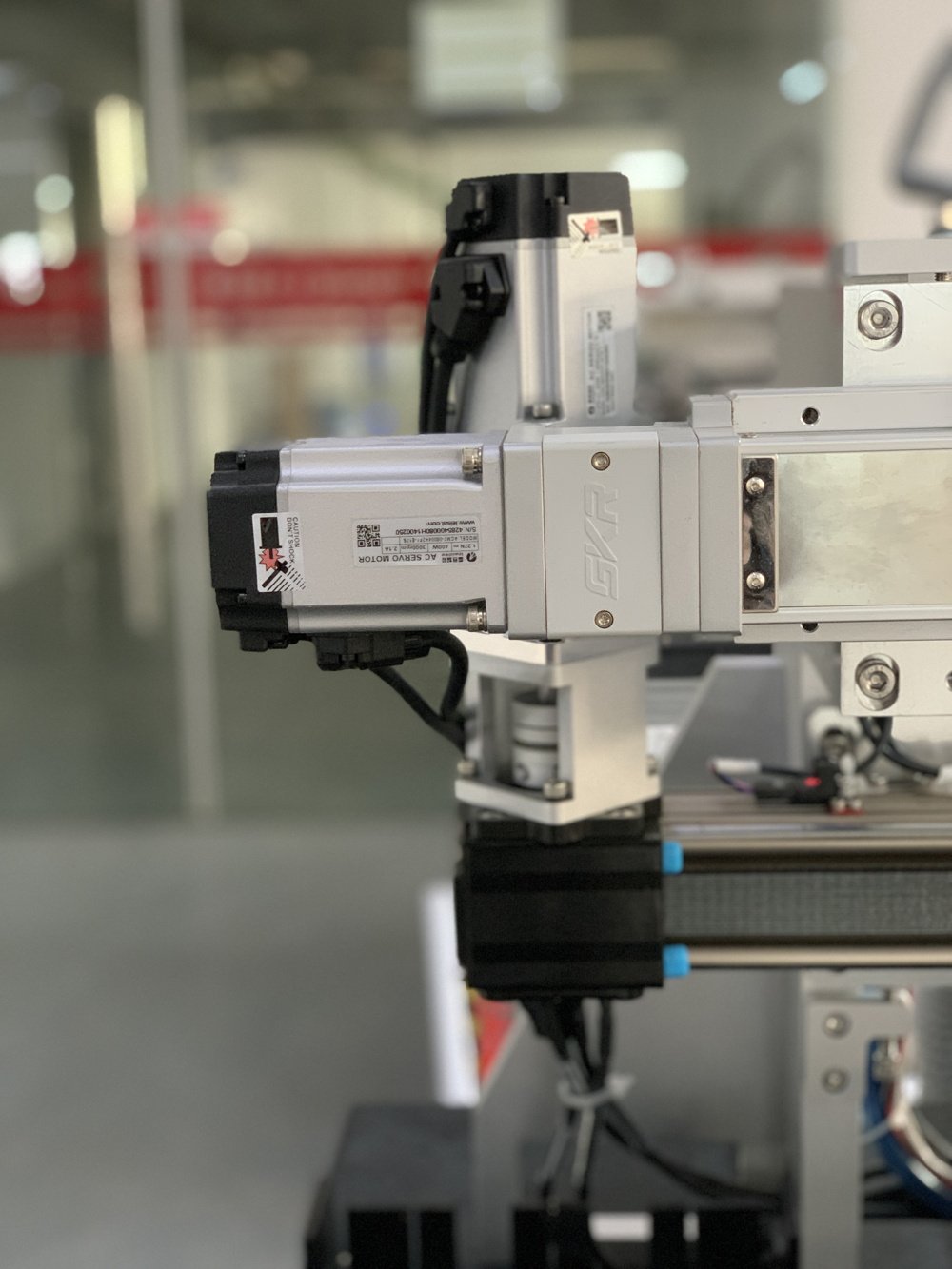

Detail picture

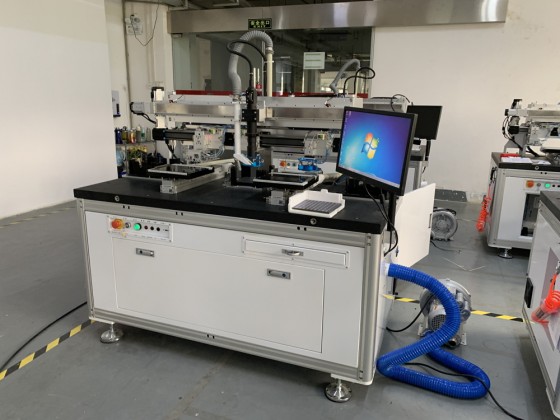

solar cell laser scribing machine


laser scribing machine for solar cell
