Solar Cell Laser Scribing Machine – Solar Panel Making Machine

Type:

Specification:

Profile:
scribing or cutting the Solar Cells and Silicon Wafers in the solar PV industry, including the mono-si (monocrystalline silicon) and poly-si (polycrystalline silicon)solar cells and the silicon wafer.
Inquiry NOW!

Solar Cell Laser Scribing Machine – Solar Panel Making Machine

Machine Function

Scribing or cutting the Solar Cells and Silicon Wafers in the solar PV industry, including the mono-si (monocrystalline silicon) and poly-si (polycrystalline silicon)solar cells and the silicon wafer.

The Whole Set:

1) 1PCS Fiber laser scribing machine

2) 1PCS Exhaust Fan

3) 1PCS LCD display with Computer(Laser mark software installed)

Machine Features

1. Using the FIBER laser or China Raycus Fiber laser or Max fiber laser

service time over  100,000hours.

Stronger adaptability to the environment

better beam quality and higher speed than Diode Pump and YAG Krypton type.

No need to replace the laser module and Krypton lamp.

2. Work table: X-Y movable

A solar cell can be automatic absorption

3. Air cooling, compact structure, small size

4. Higher conversion efficiency,

lower operating cost, save power consumption, cost and shorter maintenance time;

5. Laser Pulse width is more narrow,

Higher peak power, faster scribing cutting speed

6. A longtime uninterrupted continuous maintenance-free operation,

no consumable wearing parts to replace

7. Stepper motor or servo motor different cost.

Technical Parameters

Model

OLS-2000F

Laser wavelength

1064nm

Laser power

30W

Scribing width

30μm

Scribing speed

500mm/s Adjustable

Scribing accuracy

±0.1mm

Working area

245x245mm

Temperature control precision

0.5°C

Working power

220V/50Hz/3kvA

Working table

negative pressure absorbing and dust elimination

Cooling method

Forced air cooling


Detail picture

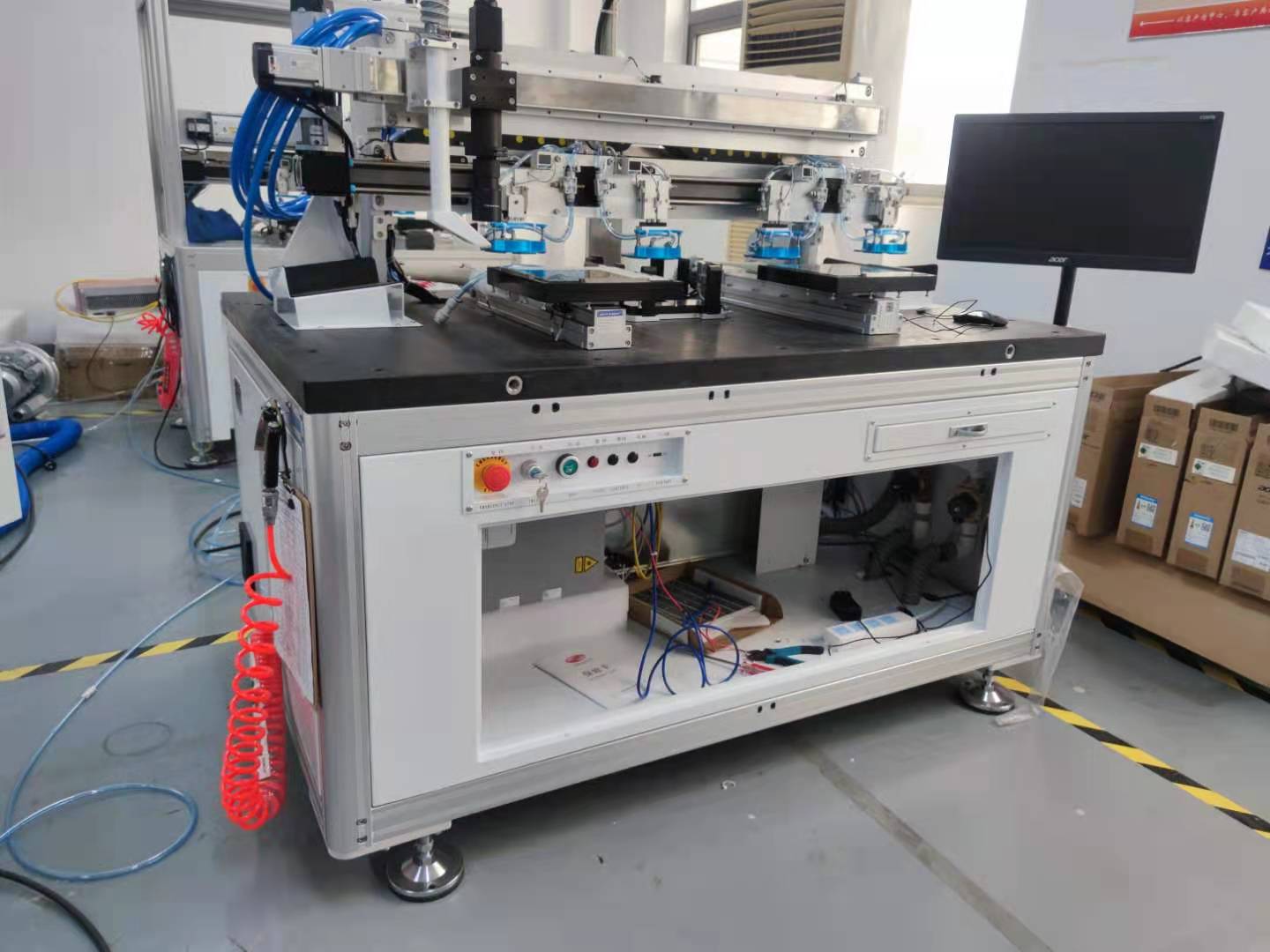

solar cell laser scribing machine

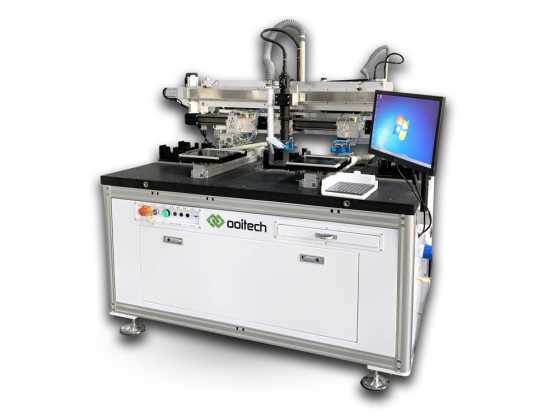

solar cell cutting machine


This year we has launched a new  non-destructive solar cell laser scribing machine(called NDC). For details, please click solar cell non-destructive laser scribing machine.
